- General Information
- Manufacturer
- AddOn
- Manufacturer Website Address
- http://www.addoncomputer.com
- Brand Name
- AddOn
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter

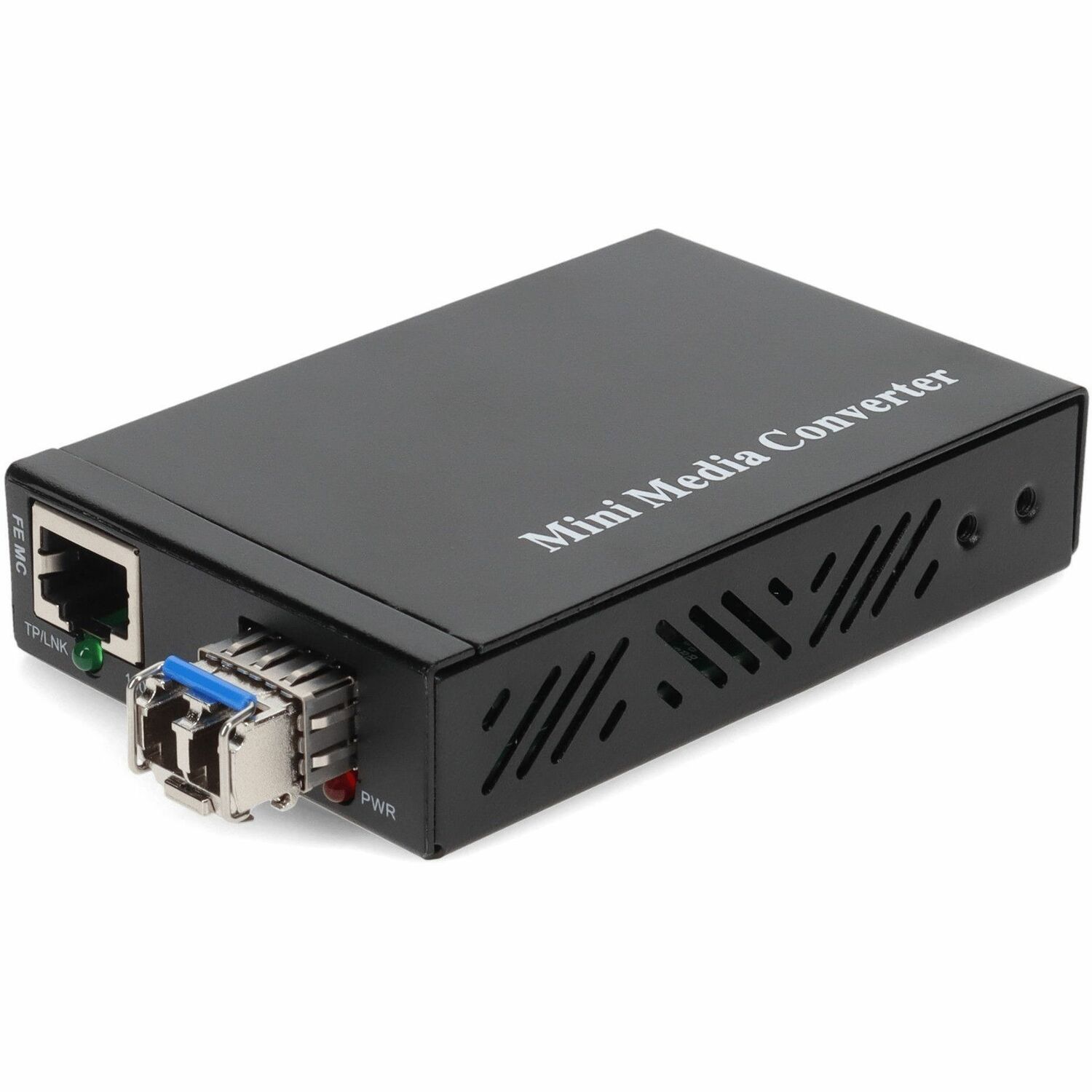

This is a mini media converter that converts a 10/100Base-TX(RJ-45) to 100Base-X via an Open SFP Port. The Open SFP Port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-X, while extending the network reach beyond the 100m reach limitation of copper and saving space (3.75" x 2.25" x 1"). Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of LC Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Data Transfer Rate
- 100 Mbit/s
- Maximum Distance Supported
- 20 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- 100Base-X
- 100Base-LX
- Power Description
- Power Source
- AC/DC
- Miscellaneous
- Application/Usage
- Network
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- TAA Compliant
- No
