- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Line
- ION
- Product Series
- C2210
- Product Type
- Transceiver/Media Converter

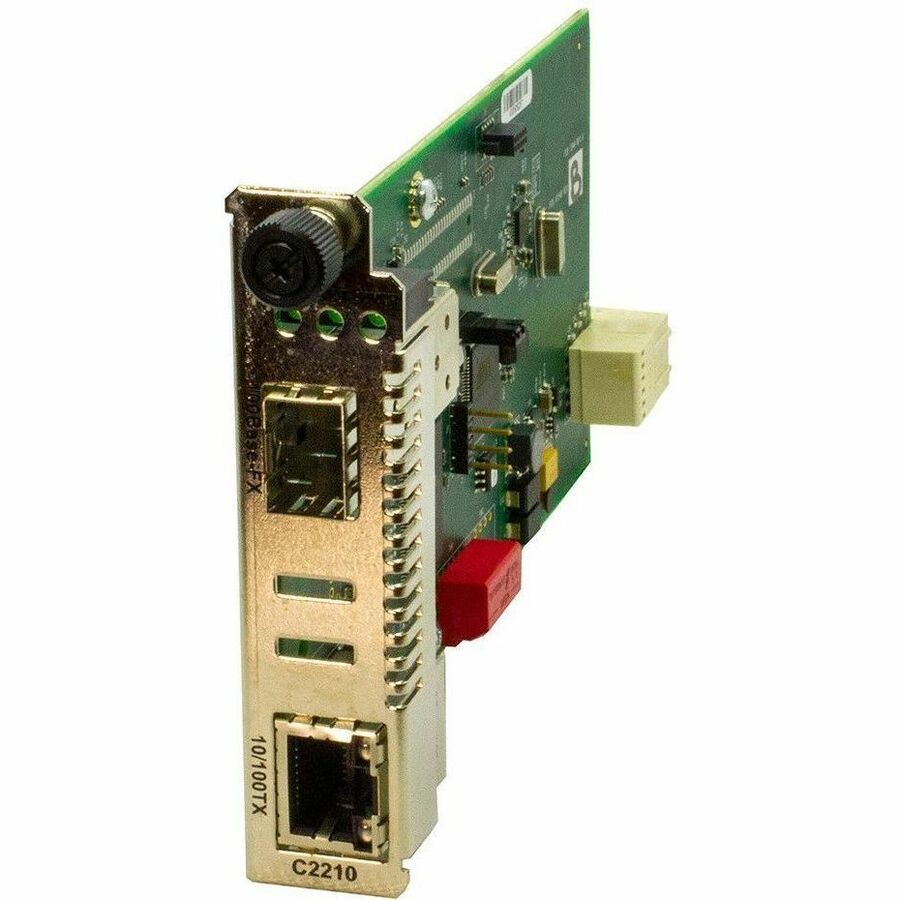

The ION C2210 is a media converter module that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. The ION C2210 is a manageable device when installed in a managed ION chassis.
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of ST Ports
- 1
- ST Port Type
- Duplex
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1300 nm
- Maximum Data Transfer Rate
- 100 Mbit/s
- Maximum Distance Supported
- 2 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 100Base-FX
- 10/100Base-TX
- Power Description
- Power Source
- DC
- Power Consumption
- 2.50 W
- Physical Characteristics
- Height
- 3.4"
- Width
- 0.9"
- Depth
- 6.5"
- Weight (Approximate)
- 1 lb
- Miscellaneous
- Compatibility
- ION Platform Chassis
- TAA Compliant
- Yes
