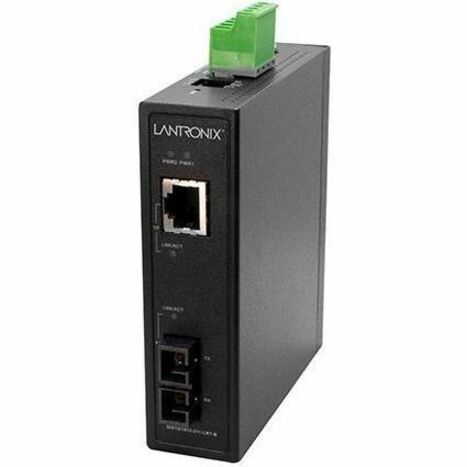

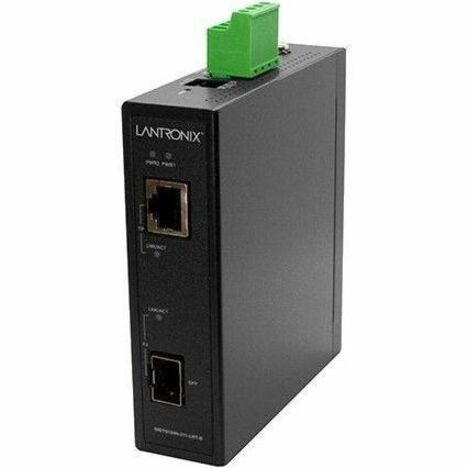

The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Series
- SISTG10xx-211-LRT-B
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 5 Year
- Interfaces/Ports
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Maximum Data Transfer Rate
- 1000 Mbit/s
- Maximum Distance Supported
- 0.10 km
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 1
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-X
- 10/100/1000Base-T
- Power Description
- Power Source
- DC
- Power Consumption
- 3.40 W
- Physical Characteristics
- Form Factor
- Rail-mountable
- Height
- 4.3"
- Width
- 1.2"
- Depth
- 3.9"
- Weight (Approximate)
- 15.52 oz
- Miscellaneous
- Package Contents
- SISTG1014-211-LRT-B Transceiver/Media Converter
- DIN Rail Mounting Brackets
- Certifications & Standards
- UL Class 1
- Div 2 for hazardous environments CISPR/EN55022 Class A
- FCC Class A
- CE Mark
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- IEC60068-2-32 (Free fall)
- IEC60068-2-27 (Shock)
- IEC60068-2-6 (Vibration)
- TAA Compliant
- Yes
