- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- OmniConverter
- Product Series
- FPoE/S
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter

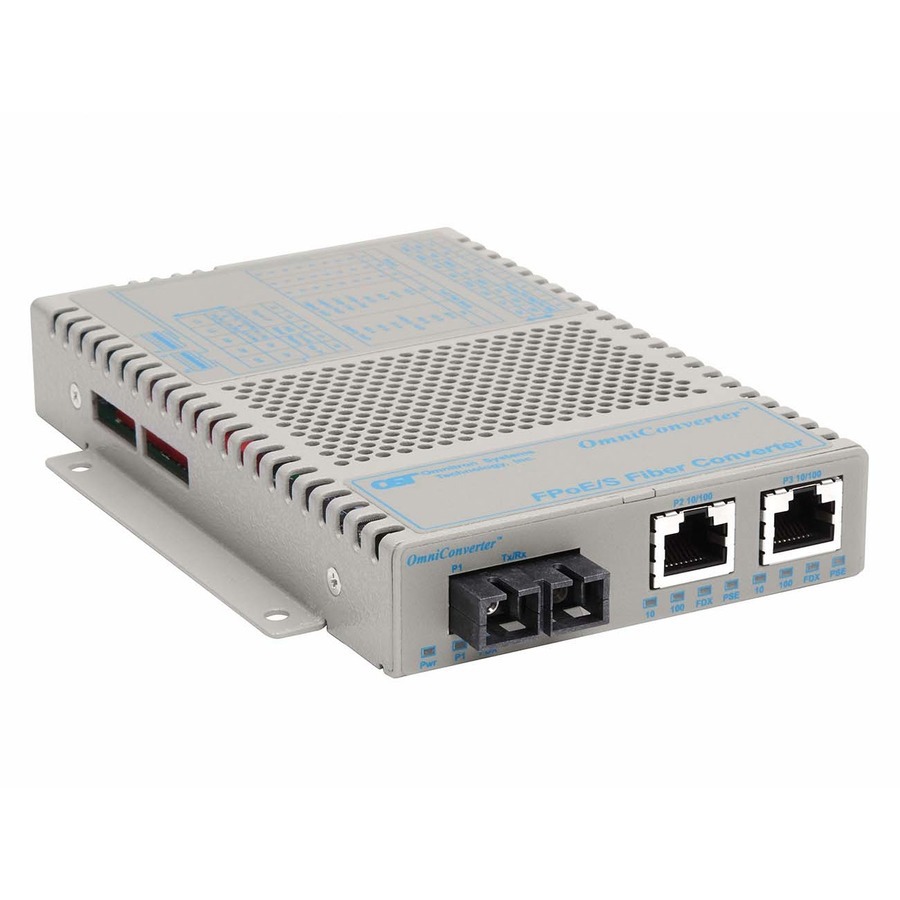

The OmniConverter FPoE/S models are multi-port media converters that convert 10/100BASE-T UTP to 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations, including single or dual UTP and SFP ports.
The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 3
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of PoE (RJ-45) Ports
- 2
- Number of SC Ports
- 1
- SC Port Type
- Duplex
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Distance Supported
- 5.01 km
- Network & Communication
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- 100Base-FX
- Power Description
- Input Voltage
- 120 V AC
- 240 V AC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- External
- Wall Mountable
- Height
- 1"
- Width
- 4.5"
- Depth
- 6"
- Weight (Approximate)
- 1 lb
- Miscellaneous
- Package Contents
- OmniConverter FPoE/S 2x PoE SC Multimode 5km US AC Powered Wide Temp
- US Power Supply - 100-240Volt / 50-60Hz
- US AC Power Cord
- User Manual
- Additional Information
Input Voltage:
- 46-57VDC via 2.1mm barrel (0.80A @ 48VDC)
- 100-240VAC/50-60Hz (0.35A @ 120VAC)
Operating Temperature Range:
- -40 to +60 deg C
- Certifications & Standards
- EIA/TIA 568A/B
- UL
- CE
- FCC Class A
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX and 100BASE-FX
- IEEE 802.3af PoE
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
