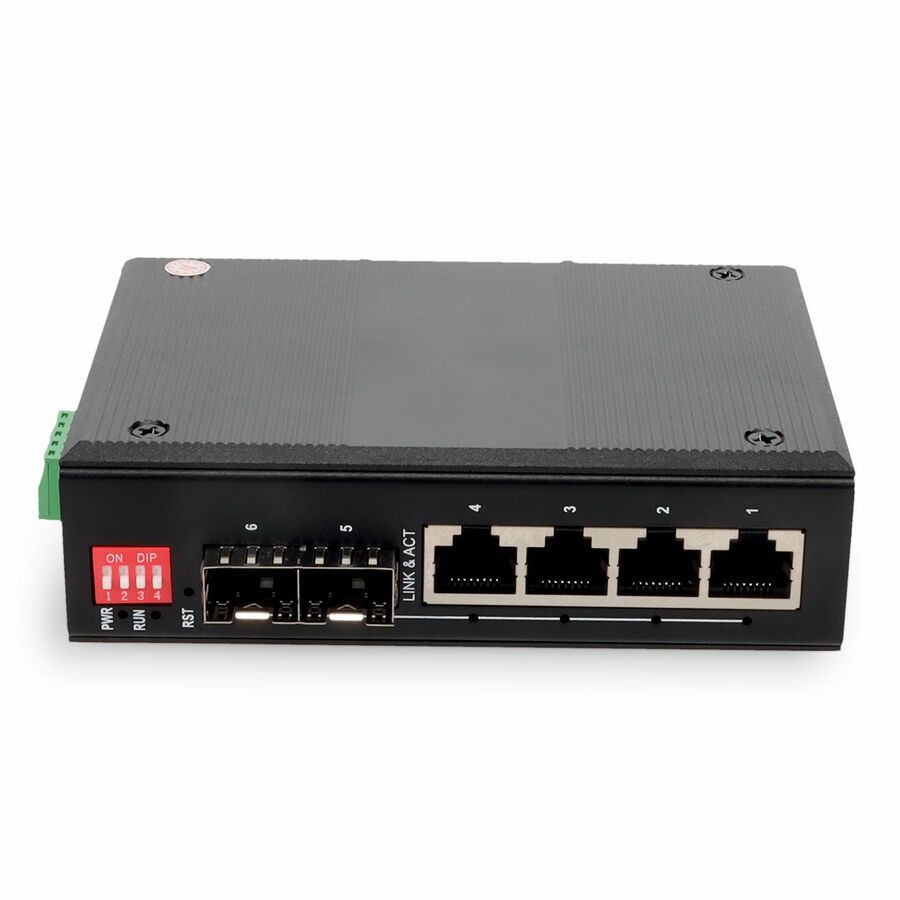

This is a six port media converter that converts and supports four 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from four 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. All the four 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
- General Information
- Manufacturer
- AddOn
- Manufacturer Website Address
- http://www.addoncomputer.com
- Brand Name
- AddOn
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 3 Year
- Interfaces/Ports
- Total Number of Ports
- 4
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 4
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Maximum Data Transfer Rate
- 1 Gbit/s
- Maximum Distance Supported
- 0.10 km
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 2
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-TX
- 1000Base-X
- Power Description
- Power Source
- AC
- Physical Characteristics
- Form Factor
- Wall Mountable
- Rail-mountable
- Miscellaneous
- Application/Usage
- Network
- Industrial
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- TAA Compliant
- No
